1.3. Start using Mapfile#

The core program of MapServer is used to generate maps based on geospatial data. Configure the function of using CGI and give it the function of WebGIS. MapServer uses a configuration file to declare the size and format of the generated map, all paths, names, formats of the data used, and various more complex control options. This configuration file is called Mapfile. Mapfile is multi-layered, and each map file defines a large number of other objects. These objects include scale bars, legends, map colors, map names, map layers, and so on. There are more objects that need to be defined and will be discussed in more detail in the following sections. In addition, there is a comprehensive reference for special MapServer keywords.

The first application uses a simple Mapfile and does not actually generate a map， it generates a rectangular picture showing the word “Hello World”. This application is very simple, so configuration problems or errors can be easily found.

Each object is explained when it is used. The program does not use any resources, such as spatial data, symbols, fonts and so on. However, it needs space to store images. You will see how to specify the directory of images in MapServer and make sure that Apache can find this directory.

1.3.1. Grammar#

  • MapFile files ignore letter case

  • Non-alphabetic strings or strings containing MapServer keywords must be enclosed in quotation marks. It is recommended that all strings be enclosed in double quotation marks.

  • File paths in MapFile can use absolute paths or relative paths, where relative paths are relative to SHAPEPATH.

  • MapFile has a specific hierarchy, Map Object is the “root” of MapFile, and other objects are under it.

  • The comment in the MapFile file starts with #, and the part from # to the end of the line is the commented part, and the content of this part will be ignored when the program is executed. Writing notes is a good habit and recommended.

Add appropriate comments to your MapFile to make it easier for others to understand your file. Such as:

# ================================================================
# MapFile for World Map
# Created by Bu Kun
# Created 2019-4-20
# ----------------------------------------------------------------
# Revision History
# ----------------------------------------------------------------

  • The syntax used for attribute names is [ATTRIBUTENAME] . Note: Property names are enclosed in square brackets and are case-sensitive. All attribute names in ESRI ShapeFiles (.dbf) are in uppercase, while in PostGIS all attribute names are in lowercase.

The use of regular expressions in MapServer depends on the C language library used by the operating system you are using. For more details, please refer to the reference documentation provided by the C library. Under Linux this library is GlibC, under this system you can use man 7 regex . These regular expressions are POSIX compliant, so under Windows users can search the Internet for “man 7 regex”.

INCLUDE#

As of MapServer 5.0, multiple MapFiles can be created using the INCLUDE command, the files form a logically single file.

Example: Include mylayer.map mymap.map in the mymap.map file as follows

# ===========================
#mymap.map
# Create By YanMing
#============================ MAP
 „„
    INCLUDE “mylayer.map”
 „„
END

The content of mylayer.map is as follows

# ===========================
# mylayer.map
# Create By YanMing
#============================
LAYER
                 NAME mylayer
                 DATA mylayer
 TYPE POLYGON  STATUS ON
END

In this case, mymap.map is logically equivalent to:

# ===========================
#mymap.map
# Create By YanMing
#============================
MAP
    LAYER
        NAME mylayer
        DATA mylayer
        TYPE POLYGON   STATUS ON
        „„
    END
END

CGI variable#

Variables are parameters that can be substituted in a MapFile file (same as variable types in programming languages, assignable values in a program, etc.). In this case, cookies and CGI parameter values are supported, which allows MapServer MapFiles to obtain user cookies (which enable secure authentication), or non-MapServer request parameters.

Syntax: % + variable name + %

Example 1: secure connection to spatial database

You need access to a PostGIS database. The username and password were saved in cookies, uid and passwd in previous operations. Then in MapFile you can write:

CONNECTION "user=%uid% password=%passwd% dbname=postgis"

Example 2: dealing with temporary files

A program needs to generate the corresponding shapefile and store the produced data in the directory corresponding to the server user. username can be obtained from a cookie, and filename can be obtained from the request parameter number.

DATA "/home/%username%/tempshp/%filename%"

Such parameters can only be used in the CGI version of MapServer, if you use MapScript, you need to come up with the corresponding logic to achieve this function.

1.3.2. “Maps” that do not use data#

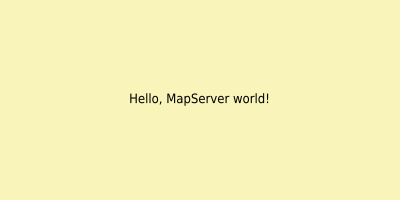

Let’s take a look at the basic usage of MapServer without using any GIS data. The following figure shows the effect:

http://webgis.pub/cgi-bin/mapserv?map=/owg/mfa0.map&mode=map&format=jpeg

The codes for the picture shown above is :

<img border="1" src="http://webgis.pub/cgi-bin/mapserv?map=/owg/mfa0.map&mode=map&format=jpeg" />

The above code is the basic usage of declaring images in HTML, but the parameters of src are not common image formats such as Jpeg, PNG, GIF, but the MapServer CGI program and some parameters. All you need to know here is that the MapServer CGI program will return an image based on these parameters, so the HTML image declaration above is actually nothing special; the mechanism will be explained later.

1.3.3. The basic usage of Mapfile#

A Mapfile defines a collection of cartographic objects, which together determine the appearance and behavior of the map displayed on the page. It functions similarly to Apache’s httpd.conf configuration file. Based on the same geographic data, mapping applications can use different Mapfiles to present maps with different characteristics, corresponding to different user behaviors.

It may seem like a static configuration file would have limited functionality, but MapServer is designed so that using Mapfiles can produce very powerful applications.

The definition of a map file consists of key-value pairs. Some of the listed values are separated by spaces and must be enclosed in parentheses. Both single and double parentheses are fine.

Keyword values with embedded spaces must be enclosed, which is good practice for all strings.

At the same time, it should be noted that MapServer keywords are not case-sensitive, but some database retrieval methods are case-sensitive.

In MapServer, to generate the above picture, the Mapfile code is:

 1MAP
 2    NAME "Hello World"
 3    SIZE 400 200
 4    IMAGECOLOR 249 245 186
 5    IMAGETYPE "png"
 6    EXTENT -1.0 -1.0 1.0 1.0
 7    LAYER
 8        STATUS DEFAULT
 9        TYPE POINT
10        FEATURE
11            POINTS
12                0.0 0.0
13            END
14            TEXT "Hello, MapServer world!"
15        END
16        CLASS
17            STYLE
18                COLOR 255 0 0
19            END
20            LABEL
21                TYPE BITMAP
22            END
23        END
24    END
25END

First Mapfile

The code is as follows, lines 01 to 06 establish the basic map image parameters. The keyword NAME defines the base name of any images created. Each time MapServer is called, it creates a unique identifier by concatenating the system time (i.e. the number of seconds since 1/1/1970 00:00:00) and the process ID. This unique identifier is appended to the basename to form the filename. Two or three character expansion (depending on file type), then append. In some cases, another string is inserted after the base name of the map server to distinguish the reference map image or legend image from the map image itself.

Keyword SIZE specifies the pixel size (width × height) of the map image.

IMAGECOLOR sets the background color of the image to white (recall that the color is chosen on the map server by specifying three integer RGB component values between 0 and 255, and white is 255, 255, 255).

Image type is set to PNG . It can also be used in Mapfile JPEG , or GIF Image.

Layer objects are defined under the map object. Before displaying a map, you need to define at least one layer in your map file. You can define as many layers as you want in MapServer. In older versions of MapServer, the upper limit of the number of layers is defined in the source code. map.h Medium, limited to 100; You can remove this restriction by modifying the source code. However, this restriction is no longer available in commonly used Linux distributions.

1.3.4. Draw content#

MapServer now knows what kind of map to produce, including the size and background color, and how to display the map on a web page. But it’s not clear what to draw and how to draw-the work is done by the LAYER object.

The layer applies a single dataset and contains a series of elements, use specific projections (which will be included later in this book) to depict them on a specific scale. Layer with keyword LAYER Generate, with keyword END End.

Keyword STATUS Determines whether the layer is rendered. Default value Default It means it’s always rendered.

Each layer has a geometric type. In this example, the feature is a point feature (a pair of coordinate values), and the point feature is selected to simplify the example.

The value of the keyword TYPE is selected as POINT Layer types are described in more detail in the next chapter.

In order to generate maps, MapServer must have spatial data. Instead of using complex real-world data to describe a messy “Hello World” map, it is built with artificial coordinate points (0. 0,0. 0).

Add the following to hello.map.

  • The keyword FEATURE specifies the associated geographic feature. Rather than reading records from a spatial database, FEATURE allows for the rapid creation of “features”.

  • The keyword FEATURE can only be used inside a LAYER object and must end with the keyword END. Then specify the feature by the coordinate point.

  • The keyword POINTS describes the listed coordinate point pairs. Values are separated by spaces. Obviously, the number of values must be even. The listed values represent a single point (if there is only one coordinate pair), and can represent a line (if there are more than one pair).

  • If the first pair of coordinates is the same as the last pair, then the value listed is the polygon (equal to the first and last point closing the figure). The keyword END ends.

  • The keyword TEXT specifies the text string used to label the feature. Again, if there are spaces, they must be enclosed in quotes.

Add the following to hello.map.

  • In each layer, one or more classes ( CLASS ) need to be defined. The default category without a specific selection will delineate all elements in the dataset. If selection criteria are specified, only content that meets the selection criteria will be depicted.

  • Labels, line shapes, annotation types, and colors for depicting features are all defined at the class level.

  • STYLE objects define the properties of symbols used in classes to draw features. For simplicity, the value defines the color in this case. STYLE objects are terminated by the keyword END.

  • The keyword COLOR determines the color of the feature, by setting the RGB component to determine the color. The value is between 0-255. Here, features are set as red dots with a default size of 1 pixel.

  • CLASS also includes LABEL objects. The LABEL object is described within the class and specifies the font type, size and color of the label. Tags are far more complex than this, and are discussed in greater detail later in this book. Labels start with the keyword LABEL and end with END.

  • The keyword TYPE determines the type of label font. There are two types: the bitmapped standard and the TrueType standard. Bitmapped fonts are generated internally without external references. TrueType must be installed and must also be determined by an alias in the file defined by the keyword FONTSET. For simplicity, the examples use bitmapped fonts.

Note that the default color for labels is black - of course it could be a different color, but for now the default is used to simplify the example.

The structure of the map file just shown is very simple, and the map it generates cannot be called a map at all. But it should paint a tagged image and display it on the web page.

1.3.5. View the result#

With MapFile, you can render it as a picture using the following command.

note: The map2img command is introduced in MapServer 8.0. It used to be shp2img .

map2img  -m hello.map  -o out.png
